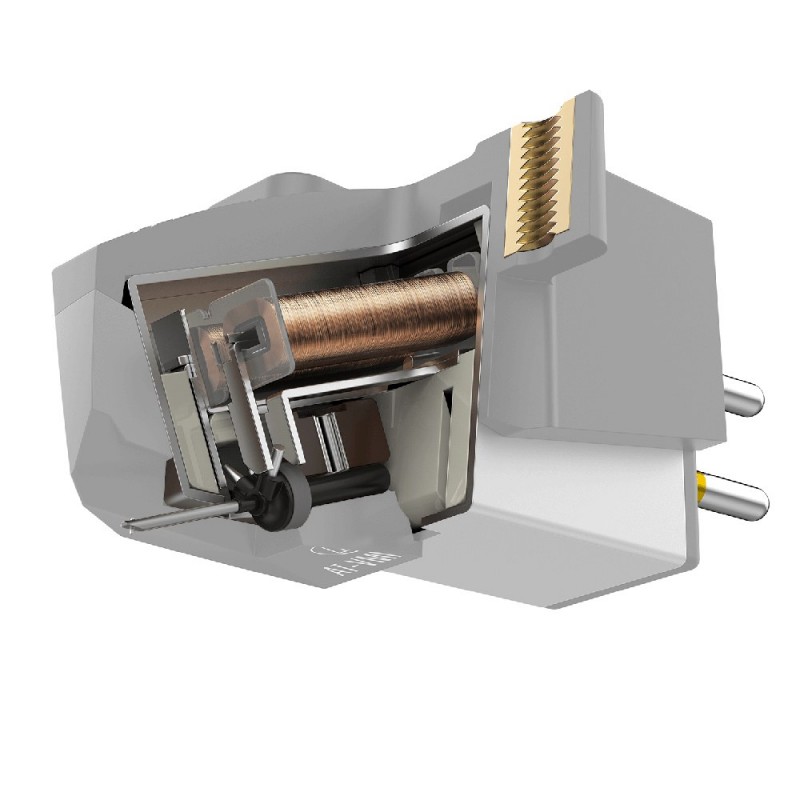

Rediscover the full depth of your vinyl collection with the Audio-Technica AT-VM95E Moving-Magnet Cartridge. Part of Audio-Technica’s acclaimed VM95 series, this cartridge combines superior engineering with affordable performance. Its elliptical 0.3 × 0.7 mil stylus offers better contact with record grooves than conical designs, ensuring enhanced detail, reduced distortion, and improved tracking accuracy.The dual moving-magnet design mirrors the left and right channel groove walls, providing precise stereo separation and balanced sound.

Delivering a 4.0 mV output, the AT-VM95E is compatible with a wide range of turntables and phono preamps. Installation is simple thanks to threaded-insert mounting, eliminating the need for tricky nuts and bolts. With a 20–22,000 Hz frequency response, this cartridge is built for both casual listeners and serious vinyl enthusiasts who value clarity, warmth, and longevity. Whether upgrading your existing setup or replacing a worn stylus, the AT-VM95E is a versatile and reliable choice.

Feature Specifications – Audio-Technica AT-VM95E Cartridge

• Cartridge Type: VM95 Series Dual Moving-Magnet Stereo Cartridge - A proven design delivering reliable performance.

• Stylus Shape & Size: Bonded Elliptical – 0.3 × 0.7 mil - Enhances high-frequency tracking precision and reduces distortion.

• Stylus Construction: Bonded Round-Shank Diamond

• Cantilever: Aluminum Pipe - Offers rigidity and a low-resonance signal path.

• Output Voltage: 4.0 mV (1 kHz, 5 cm/s) - High output ensures robust signal suited for wide range of phono inputs.

• Frequency Response: 20 Hz – 22 kHz - Delivers wide tonal range for full-spectrum vinyl playback.

• Channel Separation: 20 dB (at 1 kHz) - Provides distinct left-right imaging with clarity.

• Channel Balance: 2.0 dB (at 1 kHz) - Ensures consistent volume across both channels.

• Tracking Force: 1.8 – 2.2 g, Standard 2.0 g -Balanced for smooth groove contact and minimal wear.

• Vertical Tracking Angle (VTA): 23° - Optimizes stylus alignment for accurate groove reading.

• Compliance: Static 17 × 10⁻⁶ cm/dyne; Dynamic 7 × 10⁻⁶ cm/dyne (100 Hz) - Suited for medium to high-mass tonearms.

• Electrical Characteristics:

  • Coil Impedance: 3.3 kΩ (1 kHz)

  • DC Resistance: 485 Ω

  • Inductance: 550 mH (1 kHz)

  • Recommended Load Impedance: 47 kΩ

  • Load Capacitance: 100 – 200 pF

• Body & Mount:

  • Cartridge Weight: ~6.1 g

  • Dimensions: 17.2 × 18.9 × 28.3 mm (H × W × D)

  • Mount: Standard ½″ with M2.6 threaded inserts

  • No nuts required—mounts with just two screws.

• Compatibility:

  • Shares body with all VM95 Series cartridges—allows quick stylus upgrades.

  • Compatible with AT95E and AT95EX replacements.

• Accessories Included:

  • Two 11 mm screws, two 8 mm screws, and two washers for easy installation.
